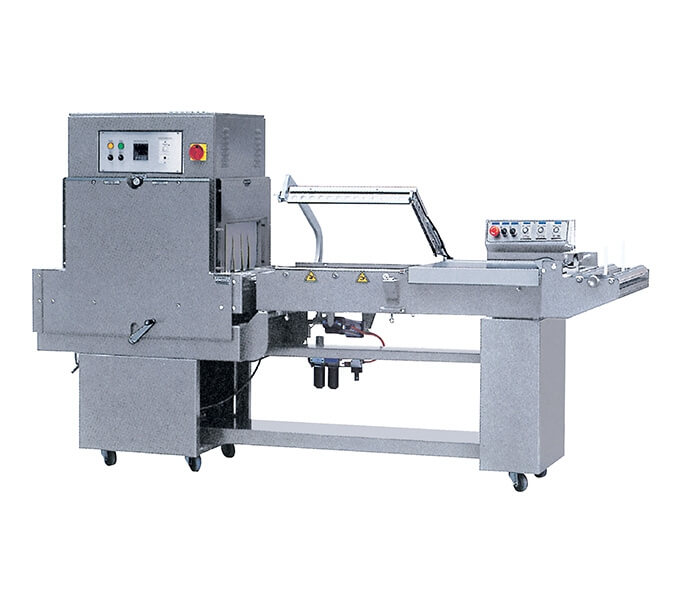

L Bar Sealer & Shrink Tunnel Combo

CHL-4050BN
BESPOKE OPTION

Any of CHAN Pack’s machines can be modified or customized design to suit your specification, if you are not sure exactly what you want then contact CHAN Pack and Sales team will discuss your requirements with you.

FEATURES
FEATURES
  • With air operated push button seal head with automatic cycle timing
  • Will seal PVC or Polyolefin shrink film
  • Fully re-circulating air chamber
  • Impulse wire seal system
  • Easy adjustable crank handle allows for tunnel height adjustment
  • Adjustable air velocity control
  • Variable tunnel conveyor speed
  • Silicon coated conveyor rods
  • Machine on castors
  • Special design film dispenser to replace film easily, pin perforation hold punch
  • The combination with a shrink tunnel for complete solution.
  • 100% Made in Taiwan Valued Quality
SPECIFICATIONS
SPECIFICATIONS
Model CHL-4050BN
Power Supply 3φ, 220V/380V
Watts 11 KW
Sealing size L500xW400mm
Tunnel size L800xW400xH200mm
Max. packing height 150mm
Conveyor height 800mm
Machine size L2600xW760xH1580mm
Air compressor 6 KG/cm²
Sealing bar Pneumatic
※CHA Pack reserves the right to modify specification for quality development.
OPTIONS
OPTIONS

Mechanical aspect:

  • Machine operation with dual magnetic hold down to clamp the L-bar down
  • Conveyor rods type: Teflon mesh belt conveyor or close roller
  • Cooling station behind tunnel

Special needs:

  • #304 Stainless steel machine construction
  • Customized color
