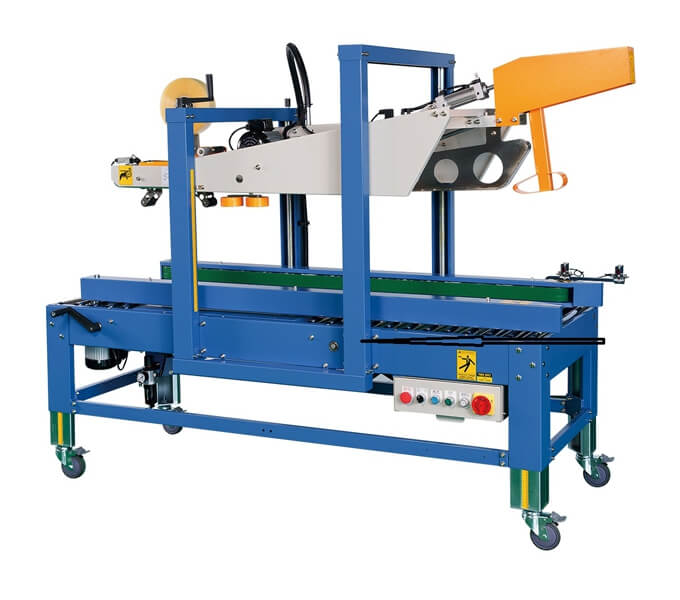

CHS-6605 Automatic Flaps Folding Case Taping Sealer with Top & Side Belt Drive


Any of CHAN Pack’s machines can be modified or customized design to suit your specification, if you are not sure exactly what you want then contact CHAN Pack and Sales team will discuss your requirements with you.

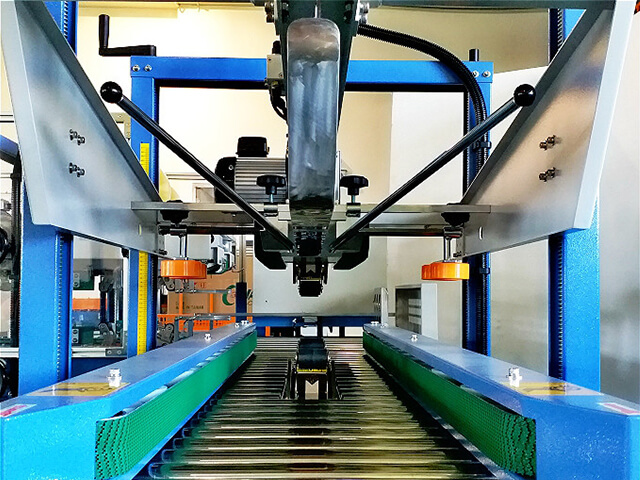

  • Carton dragging by Top & Side belts with independent motors
  • Crank handle adjustment of carotn width and height, easy operation and no need professional technicians
  • Pneumatic flap folding. To closes all top flaps and seals the top & bottom of cartton
  • Carton sealer is designed with a stable four-column support structure
  • Suitable for big and heavy boxes especially
  • Can bear up to 35kg loading
  • Stainless roller table for carton movement
  • Carton sealing: top and bottom
  • Two sides compression rollers, have better tightness

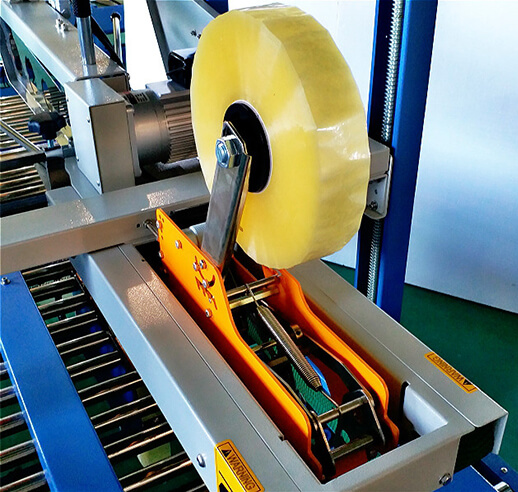

  • The tape head is developed and produce by CHA PACK, the length of tape that can be placed up to 900m. (260mm diameter)
  • Dual telescoping mast with cushion. Adjust the unevenness of the carton.
  • Machine with mobile locking casters, easy to move anywhere
  • Emergency stop on top taping head for quick access
  • Parts are manufactured with mold.- Stable quality, Short lead time
  • Carton sealer is designed to meet the needs of uniform in-line carton closure applications
  • Machine can be available with other equipments, e.g: 1. Labeling mc. 2. Weighing mc. 3.Inkjet Printers
  • Machines are designed and produced by ourselves. Rugged design, low maintenance rate
  • 90% self-production rate, 100% Made in Taiwan.


Model CHS-6605
Function Top & Side belt driven
Power Supply 1 phase,110V/220V/240V
Tape Width 2" or 3"
2” & 3" Tape Sealing size L250-500mm, W150-500mm, H110-500mm
Tape overlap L60±5 (mm) standard
Working table height 570-770mm
Conveyor Speed 20 M/min
Capacity 9~10 cases/per min. ( Data is for carton length=300mm)
*** Depending on box size and operator efficiency.***
Control system Traditional distribution
Machine dimension L1960 x W930 x H1560mm
Air compressor 6kg/cm²
※CHA Pack reserves the right to modify specification for quality development.


Mechanical & Mechatronic aspect:

  • Customized, Special carton dimensions
  • Tape overlap 70±5mm
  • Extension roller table L500xW500mm / Roller converor L750xW500mm for in/out box packaging
  • Outside diameter of OPP tape 350mm
  • Detection for no tape and NG taping function
  • 4“HMI + PLC controller (To provides high-speed folding and capacity)
  • Mechanical Counter
  • CE Type
  • Combine with case erector, or case strapper or pallet wrapper for end of line packaging automation
  • Double roller table (Over 40kgs.)
  • Safety fences with shut-off device

Special needs:

  • Stainless steel version construction
  • Customized color
